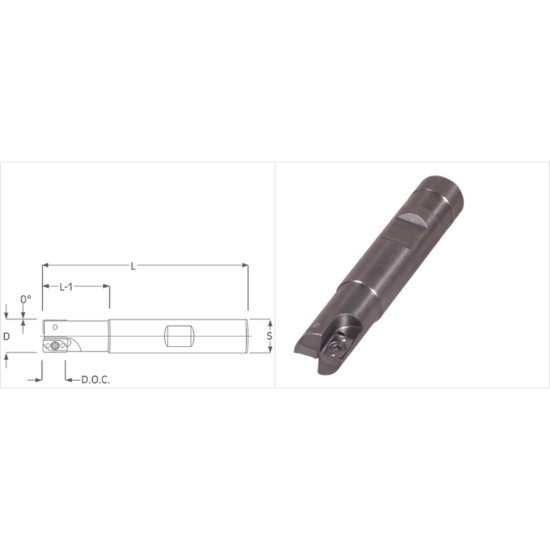

Picture of K-Tool Xmm-375 Milling Cutter 90.0° 0.375 Cutter Diameter 0.375 Weldon

K-Tool Xmm-375 Milling Cutter 90.0° 0.375 Cutter Diameter 0.375 Weldon

Part Number: KTOXMM-375 ISO: XMM-375 ANSI:XMM-375
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$109.88
SKU: 1013183

Description

K-TOOL XMM-375 Parallelogram 90.0°, End Mill End Mill Weldon 0.3750 Positive 0.3750 9.53MM - 3/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type End Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style MG
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Inter/Extern External
Insert Screw 164T
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 1
Tool Dia 0.3750 9.53MM - 3/8
Neck Length 1.9700 50.04MM
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Depth Of Cut Max 0.2180
Materials & Finish
Tool Material Steel
