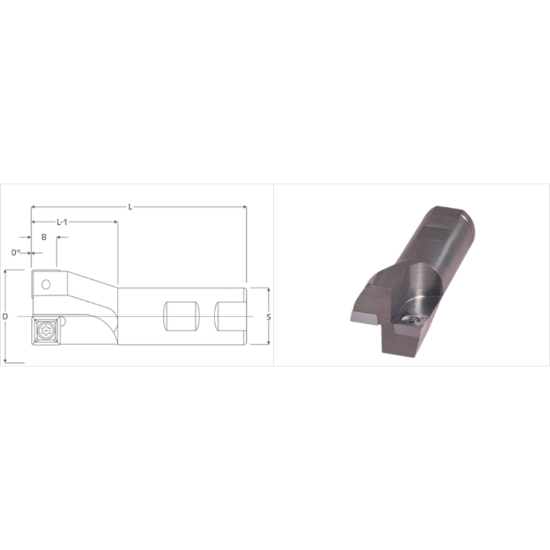

Picture of K-TOOL XDM-1250 Milling Cutter 90.0°, Drill Mill 1.250 Cutter Diameter 1.000 Weldon

K-TOOL XDM-1250 Milling Cutter 90.0°, Drill Mill 1.250 Cutter Diameter 1.000 Weldon

ANSI: XDM-1250

ISO: XDM-1250

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOXDM-1250
Delivery date: 3-5 days
$172.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Features And Benefits

Cuts a flat bottom within .001 - Uses the same insert in both pockets - Center cutting - Drill from solid or ramp into a part at any angle - Ideal for pocket milling - Drilling shallow depth flat bottom holes - 4 cutting edges per insert

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 3 90.0°, Drill Mill
Insert Application Semi Finishing, Roughing
Sold by Pieces 1
Additional Key Information 2 Milling Cutter
Application Ramp Milling, Side Milling, Pocket Milling, Slot Milling, Drilling, Plunge Milling, Shoulder Milling
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Additional Key Information 1 90.0°, Drill Mill
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.3400
Neck Length 1.3750 34.93MM
Tool Material Steel
Overall Len 5.2500 133.35MM
Flutes/Inserts 2
Machine Side WELDON1.0000
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 314T
