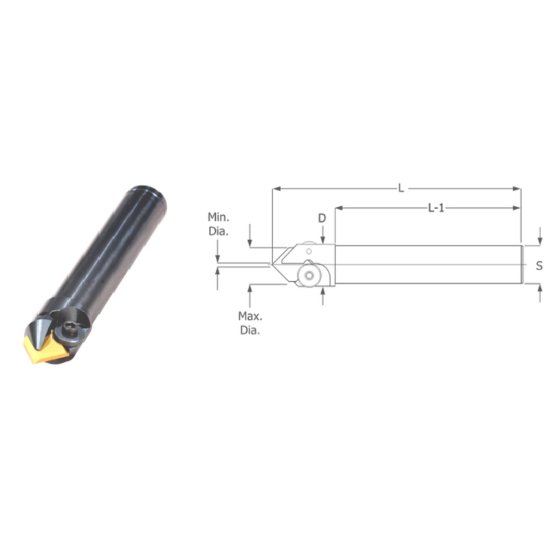

Picture of K-Tool SDCS-902L 90° Spot Drills - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.125 Cutter Diameter 1.000 Round

K-Tool SDCS-902L 90° Spot Drills - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.125 Cutter Diameter 1.000 Round

Part Number: KTOSDCS-902L ISO: SDCS-902L ANSI:SDCS-902L
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1013108
Vendor: Sussex Tool and Supply
$210.83

Description

K-TOOL SDCS-902L Indexable Drill Spot Drill Cylindrical 1.0000 1.1250 28.58MM - 1-1/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Cutter
Type Of Tool Spot Drill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style 902
Drill Type Indexable Drill
Type Indexable Drill Spot Drill
Clamp Screw 103212
Clamp/Wedge 621915
Dimensions & Sizing
Overall Length 6.5300 165.86MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Dia 1.1250 28.58MM - 1-1/8
Performance & Capacity
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Cut Dia Max 0.9000 22.86MM
Materials & Finish
Tool Material Steel
