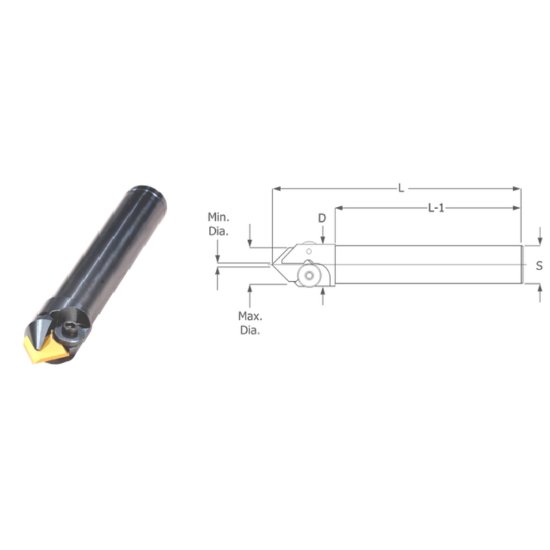

Picture of K-Tool SDCS-9025 90° Spot Drills - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.250 Cutter Diameter 1.000 Round

K-Tool SDCS-9025 90° Spot Drills - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.250 Cutter Diameter 1.000 Round

Part Number: KTOSDCS-9025 ISO: SDCS-9025 ANSI:SDCS-9025
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1013109
Vendor: Sussex Tool and Supply
$220.65

Description

K-TOOL SDCS-9025 Indexable Drill Spot Drill Cylindrical 1.0000 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Cutter
Type Of Tool Spot Drill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style 902
Drill Type Indexable Drill
Type Indexable Drill Spot Drill
Clamp Screw 103212
Clamp/Wedge 621915
Dimensions & Sizing
Overall Length 4.6900 119.13MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Dia 1.2500 31.75MM - 1-1/4
Performance & Capacity
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Cut Dia Max 1.2700 32.26MM
Materials & Finish
Tool Material Steel
