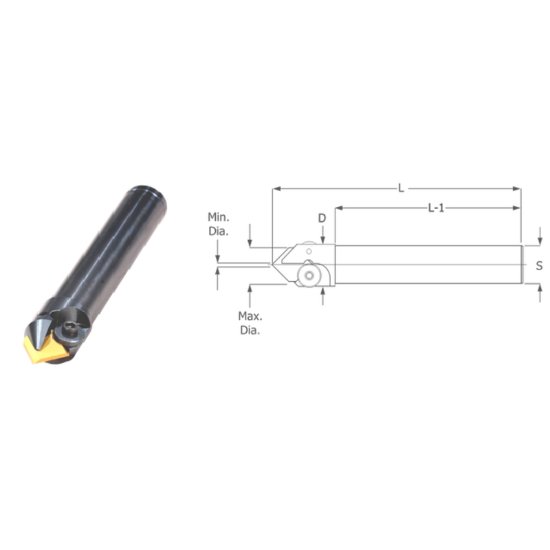

Picture of K-Tool SDCS-90 90° Spot Drills - 2 Flutes Effective - Must be held in a Collet Milling Cutter 0.430 Cutter Diameter 0.375 Round

K-Tool SDCS-90 90° Spot Drills - 2 Flutes Effective - Must be held in a Collet Milling Cutter 0.430 Cutter Diameter 0.375 Round

Part Number: KTOSDCS-90 ISO: SDCS-90 ANSI:SDCS-90
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1013103
Vendor: Sussex Tool and Supply
$152.76

Description

K-TOOL SDCS-90 Indexable Drill Spot Drill Cylindrical 0.3750 0.4300 10.92MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Cutter
Type Of Tool Spot Drill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style 90
Inter/Extern External
Drill Type Indexable Drill
Type Indexable Drill Spot Drill
Clamp Screw 25618
Clamp/Wedge 180310
Dimensions & Sizing
Overall Length 3.2500 82.55MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Tool Dia 0.4300 10.92MM
Performance & Capacity
Cut Dia Min 0.0700 1.78MM - #50
Cut Dia Max 0.3900 9.91MM
Materials & Finish
Tool Material Steel
