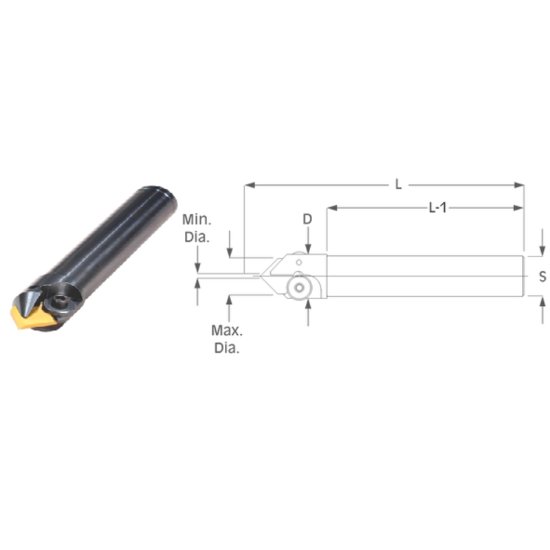

Picture of K-Tool SDCS-823 82° Spot Drills - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.500 Cutter Diameter 1.000 Round

K-Tool SDCS-823 82° Spot Drills - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.500 Cutter Diameter 1.000 Round

Part Number: KTOSDCS-823 ISO: SDCS-823 ANSI:SDCS-823
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1013088
Vendor: Sussex Tool and Supply
$227.80

Description

K-TOOL SDCS-823 Indexable Drill Spot Drill Cylindrical 1.0000 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Cutter
Type Of Tool Spot Drill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SD
Drill Type Indexable Drill
Type Indexable Drill Spot Drill
Clamp Screw 103212
Clamp/Wedge 621915
Dimensions & Sizing
Overall Length 4.9370 125.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 823
Performance & Capacity
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Cut Dia Max 1.5000 38.10MM - 1-1/2
Materials & Finish
Tool Material Steel
