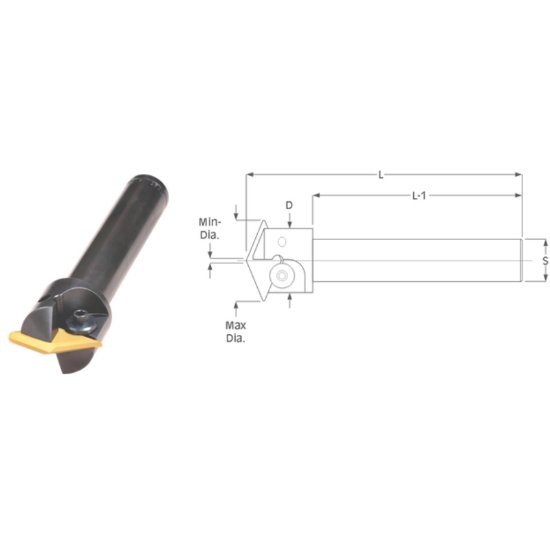

Picture of K-Tool SDCS-1352L 135° Spot Drills - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.600 Cutter Diameter 1.000 Round

K-Tool SDCS-1352L 135° Spot Drills - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.600 Cutter Diameter 1.000 Round

Part Number: KTOSDCS-1352L ISO: SDCS-1352L ANSI:SDCS-1352L
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1013145
Vendor: Sussex Tool and Supply
$210.83

Description

K-TOOL SDCS-1352L Indexable Drill Spot Drill Cylindrical 1.0000 1.6000 40.64MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Cutter
Type Of Tool Spot Drill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style 1352
Drill Type Indexable Drill
Type Indexable Drill Spot Drill
Clamp Screw 103212
Clamp/Wedge 621915
Dimensions & Sizing
Overall Length 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Dia 1.6000 40.64MM
Performance & Capacity
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Cut Dia Max 1.6250 41.28MM
Materials & Finish
Tool Material Steel
