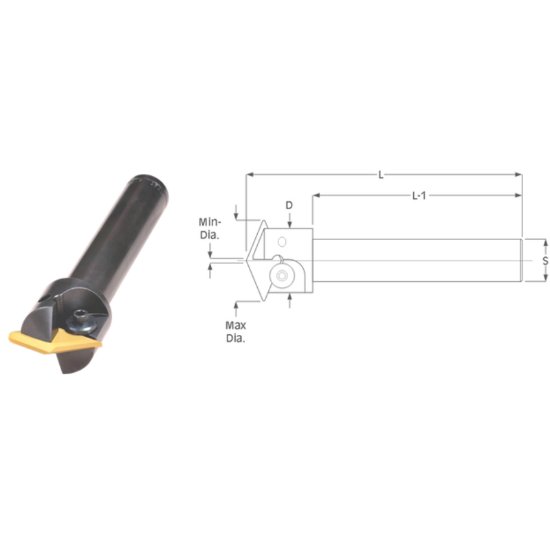

Picture of K-Tool SDCS-1351L 135° Spot Drills - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.000 Cutter Diameter 0.750 Round

K-Tool SDCS-1351L 135° Spot Drills - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.000 Cutter Diameter 0.750 Round

Part Number: KTOSDCS-1351L ISO: SDCS-1351L ANSI:SDCS-1351L
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1013144
Vendor: Sussex Tool and Supply
$175.09

Description

K-TOOL SDCS-1351L Indexable Drill Spot Drill Cylindrical 0.7500 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Cutter
Type Of Tool Spot Drill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style 1351
Drill Type Indexable Drill
Type Indexable Drill Spot Drill
Clamp Screw 103212
Clamp/Wedge 501912
Dimensions & Sizing
Overall Length 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Dia 1.0000 25.40MM
Performance & Capacity
Cut Dia Min 0.1560 3.96MM
Cut Dia Max 1.0620 26.97MM
Materials & Finish
Tool Material Steel
