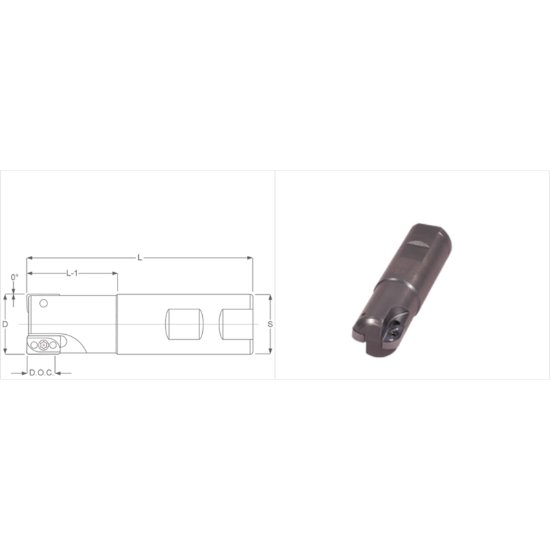

Picture of K-Tool RM-1500B-4 Milling Cutter 90.0° 1.500 Cutter Diameter 1.000 Weldon

K-Tool RM-1500B-4 Milling Cutter 90.0° 1.500 Cutter Diameter 1.000 Weldon

Part Number: KTORM-1500B-4 ISO: RM-1500B-4 ANSI:RM-1500B-4
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$238.52
SKU: 1013217

Description

K-TOOL RM-1500B-4 Parallelogram 90.0°, End Mill End Mill Weldon 1.0000 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type End Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style MG
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Screw 560T
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Tool Dia 1.5000 38.10MM - 1-1/2
Neck Length 0.8750 22.23MM
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Depth Of Cut Max 0.5400
Materials & Finish
Tool Material Steel
