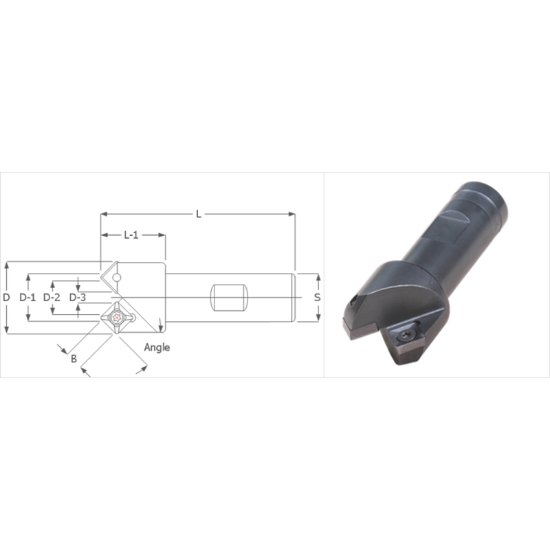

Picture of K-Tool OD-1245 Milling Cutter 45.0°

K-Tool OD-1245 Milling Cutter 45.0°

Part Number: KTOOD-1245 ISO: OD-1245 ANSI:OD-1245
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012989
Vendor: Sussex Tool and Supply
$294.80

Description

K-TOOL OD-1245 Square 45.0°, Chamfer Mill End Mill Weldon 1.0000 Positive 2.1870 55.55MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Chamfer Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Screw 838T
Dimensions & Sizing
Overall Length 3.7500 95.25MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 2.1870 55.55MM
Insert Size Ic 53
Neck Length 1.5000 38.10MM
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 0.5500 13.97MM
Depth Of Cut Max 0.5630
Cut Dia Max 1.2500 31.75MM - 1-1/4
Materials & Finish
Tool Material Steel
