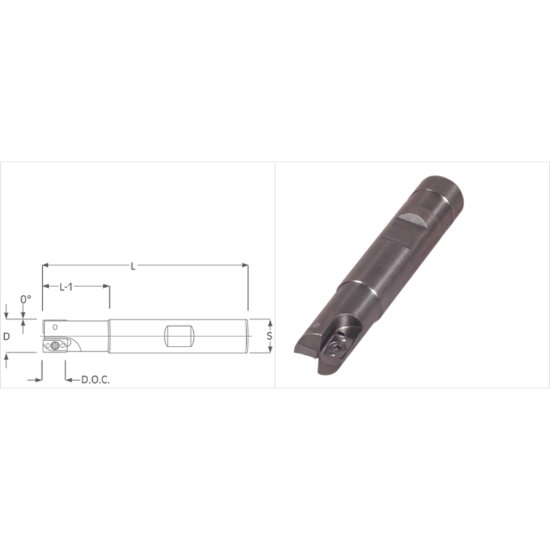

Picture of K-Tool mm-625 Milling Cutter 90.0° 0.625 Cutter Diameter 0.625 Weldon

K-Tool mm-625 Milling Cutter 90.0° 0.625 Cutter Diameter 0.625 Weldon

Part Number: KTOMM-625 ISO: MM-625 ANSI:MM-625
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$160.80
SKU: 1013189

Description

K-TOOL MM-625 Parallelogram 90.0°, End Mill End Mill Weldon 0.6250 Positive 0.6250 15.88MM - 5/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type End Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style MG
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Screw 164T
Dimensions & Sizing
Overall Length 2.6250 66.68MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 4
Tool Dia 0.6250 15.88MM - 5/8
Neck Length 0.7500 19.05MM
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Depth Of Cut Max 0.2180
Materials & Finish
Tool Material Steel
