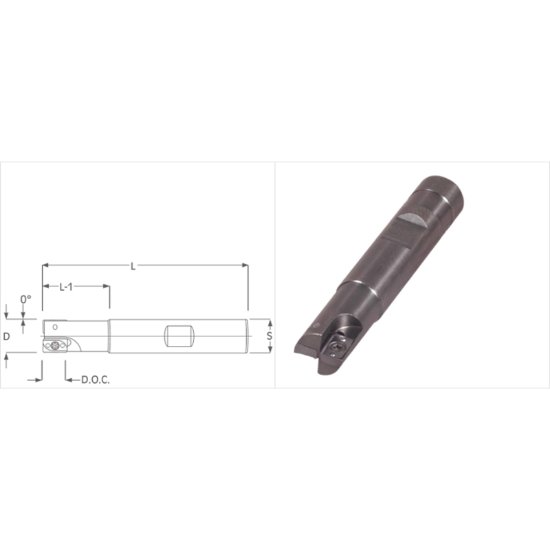

Picture of K-Tool mm-500 Milling Cutter 90.0° 0.500 Cutter Diameter 0.500 Weldon

K-Tool mm-500 Milling Cutter 90.0° 0.500 Cutter Diameter 0.500 Weldon

Part Number: KTOMM-500 ISO: MM-500 ANSI:MM-500
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$124.17
SKU: 1013187

Description

K-TOOL MM-500 Parallelogram 90.0°, End Mill End Mill Cylindrical 0.5000 Positive 0.5000 12.70MM - 1/2 Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type End Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style MG
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Screw 164T
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 3
Tool Dia 0.5000 12.70MM - 1/2
Neck Length 0.7500 19.05MM
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Depth Of Cut Max 0.2180
Materials & Finish
Tool Material Steel
