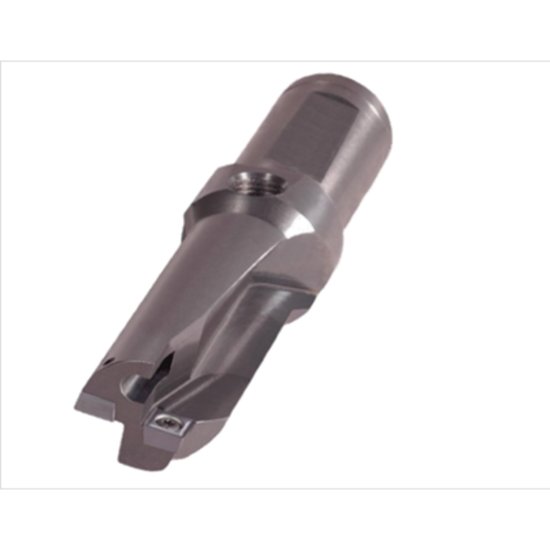

Picture of K-Tool FB-1687-3 Multi Insert Drill 1.687 Cutter Diameter 1.500 Weldon

K-Tool FB-1687-3 Multi Insert Drill 1.687 Cutter Diameter 1.500 Weldon

Part Number: KTOFB-1687-3 ISO: FB-1687-3 ANSI:FB-1687-3
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1078203
Vendor: Sussex Tool and Supply
$411.83

Description

K-TOOL FB-1687-3 Square Indexable Drill Boring Bar Dia1.5000,Weldon 1.5000 Positive 1.6870 42.85MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Inter/Extern Internal
Drill Type Indexable Drill
Coolant Type Through
Type Indexable Drill Multi Insert
Insert Screw 638T
Drill Feature Flat Bottom
Dimensions & Sizing
Overall Length 9.3120 236.52MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 2
Tool Dia 1.6870 42.85MM
Tool Over Hang 6.3120
Performance & Capacity
Depth Of Cut Max 5.0610
Drill DOC 5.0610 128.55MM
Materials & Finish
Tool Material Steel
