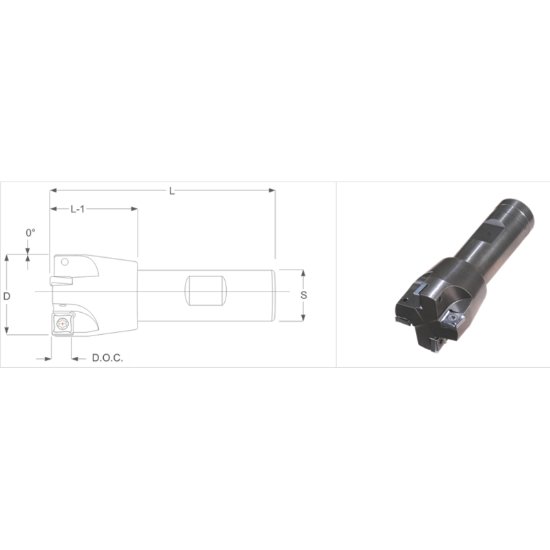

Picture of K-Tool ESP-750-2 Milling Cutter 90.0° 0.750 Cutter Diameter 0.750 Weldon

K-Tool ESP-750-2 Milling Cutter 90.0° 0.750 Cutter Diameter 0.750 Weldon

Part Number: KTOESP-750-2 ISO: ESP-750-2 ANSI:ESP-750-2
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$166.16
SKU: 1013262

Description

K-TOOL ESP-750-2 Square 90.0°, End Mill End Mill Weldon 0.7500 Negative 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type End Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Insert Screw 314T
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Depth Of Cut Max 0.2800
Materials & Finish
Tool Material Steel
