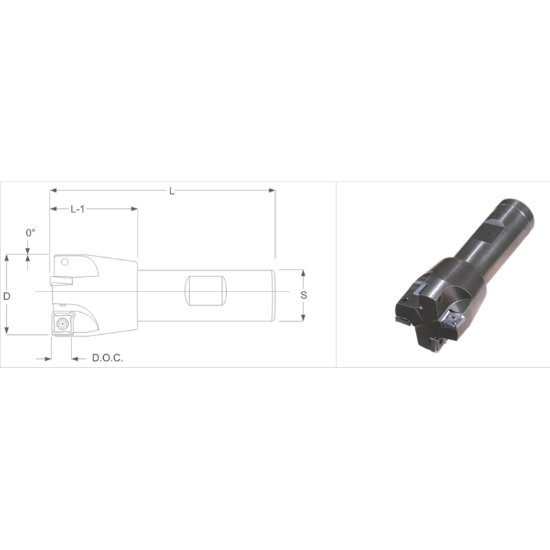

Picture of K-Tool ESP-1500-3 Milling Cutter 90.0° 1.500 Cutter Diameter 1.000 Weldon

K-Tool ESP-1500-3 Milling Cutter 90.0° 1.500 Cutter Diameter 1.000 Weldon

Part Number: KTOESP-1500-3 ISO: ESP-1500-3 ANSI:ESP-1500-3
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$267.11
SKU: 1013267

Description

K-TOOL ESP-1500-3 Square 90.0°, End Mill End Mill Weldon 1.0000 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type End Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Insert Screw 314T
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.5000 38.10MM - 1-1/2
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Depth Of Cut Max 0.4050
Materials & Finish
Tool Material Steel
