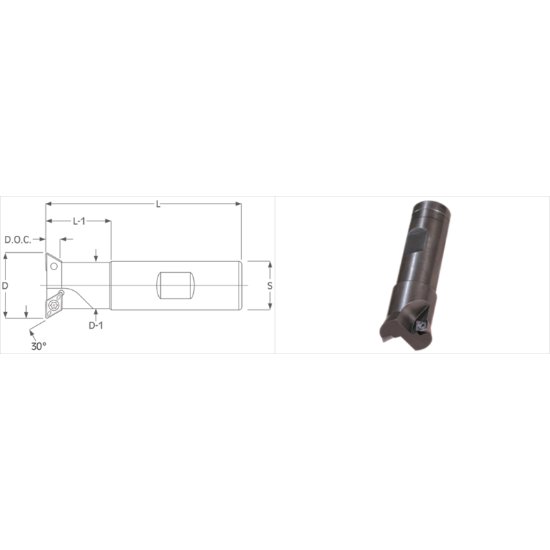

Picture of K-Tool DT-1515 Milling Cutter 15.0° 1.500 Cutter Diameter 0.750 Weldon

K-Tool DT-1515 Milling Cutter 15.0° 1.500 Cutter Diameter 0.750 Weldon

Part Number: KTODT-1515 ISO: DT-1515 ANSI:DT-1515
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1013076
Vendor: Sussex Tool and Supply
$210.83

Description

K-TOOL DT-1515 55.0 ° 15.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Dove Tail
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Finishing, Semi Finishing
Insert Style DP
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Positive
Insert Screw 538T
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 32
Neck Length 1.2500 31.75MM
Neck Dia 1.25
Geometry & Angles
Cutting Edge Angle 15.0°
Performance & Capacity
Cut Dia Max 1.5000 38.10MM - 1-1/2
Materials & Finish
Tool Material Steel
