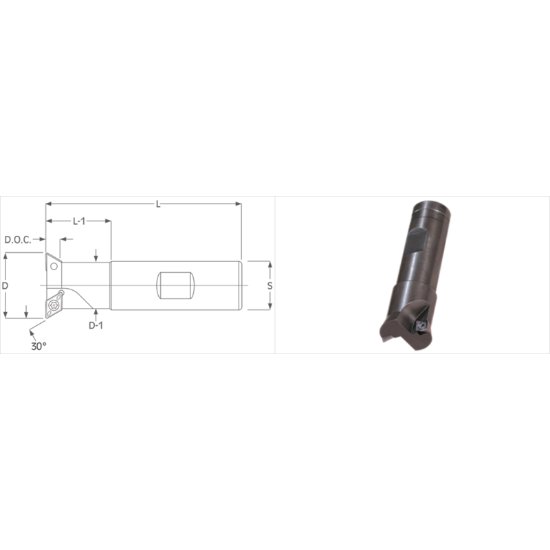

Picture of K-Tool DT-1075 Milling Cutter 30.0° 1.000 Cutter Diameter 0.750 Weldon

K-Tool DT-1075 Milling Cutter 30.0° 1.000 Cutter Diameter 0.750 Weldon

Part Number: KTODT-1075 ISO: DT-1075 ANSI:DT-1075

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: 1013073
Vendor: Sussex Tool and Supply
$184.00
K-TOOL DT-1075 55.0 ° 30.0°, Dove Tail End Mill Weldon 0.7500 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Dove Tail
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Finishing, Semi Finishing
Insert Style DD
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Positive
Insert Size Ic 21
Neck Length 1.0000 25.40MM
Cut Dia Max 1.0000 25.40MM
Insert Screw 314T
Cutting Edge Angle 30.0°
Neck Dia 0.7
