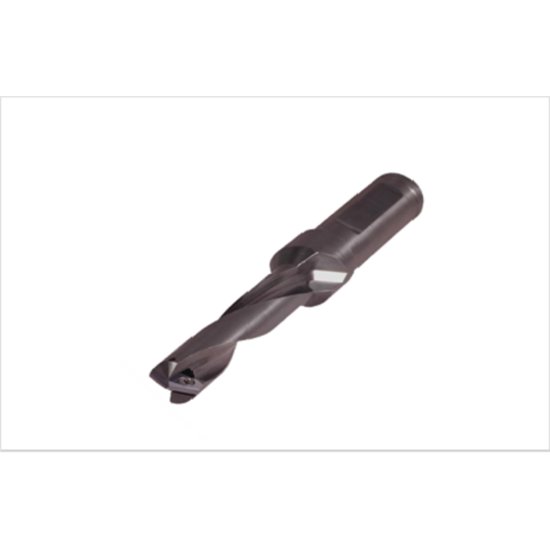

Picture of K-Tool DSL-92-101XL Single Insert Drill 1.000 Weldon

K-Tool DSL-92-101XL Single Insert Drill 1.000 Weldon

Part Number: KTODSL-92-101XL ISO: DSL-92-101XL ANSI:DSL-92-101XL
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1078289
Vendor: Sussex Tool and Supply
$358.23

Description

K-TOOL DSL-92-101XL Flat Blade Indexable Drill Boring Bar Dia1.0000,Weldon 1.0000 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DI
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Type Positive
Inter/Extern Int / Ext
Drill Type Indexable Drill
Coolant Type Through
Type Indexable Drill Single Insert
Insert Screw 560T
Dimensions & Sizing
Overall Length 9.9500 252.73MM
Shank/Pilot Dia 1.0000 25.40MM
Performance & Capacity
Cut Dia Min 0.9260 23.52MM
Depth Of Cut Max 6.0000
Cut Dia Max 1.0100 25.65MM
Drill DOC 6.0000 152.40MM
Materials & Finish
Tool Material Steel
