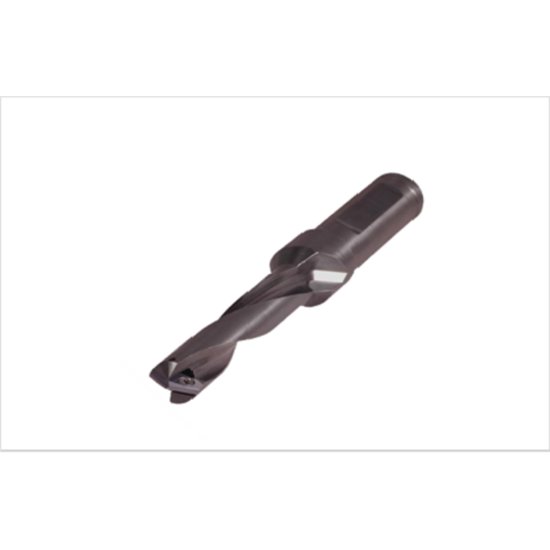

Picture of K-Tool DSL-57-63L Single Insert Drill 0.750 Weldon

K-Tool DSL-57-63L Single Insert Drill 0.750 Weldon

Part Number: KTODSL-57-63L ISO: DSL-57-63L ANSI:DSL-57-63L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: 1078249
Vendor: Sussex Tool and Supply
$266.00
K-TOOL DSL-57-63L Flat Blade Indexable Drill Boring Bar Dia0.750,Weldon 0.750 Positive Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 6.5000 165.10MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DI
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Type Positive
Cut Dia Min 0.5710 14.50MM
Inter/Extern Internal
Drill Type Indexable Drill
Coolant Type Through
Depth Of Cut Max 3.0000
Type Indexable Drill Single Insert
Cut Dia Max 0.6300 16.00MM
Drill DOC 3.0000 76.20MM
Insert Screw 314T
