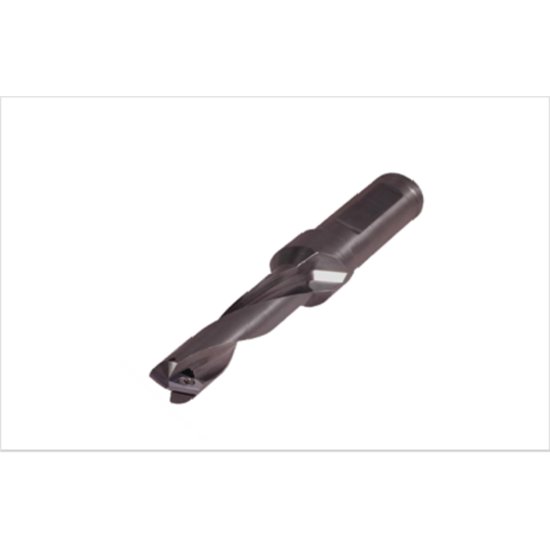

Picture of K-Tool DSL-126-138XL Single Insert Drill 1.250 Weldon

K-Tool DSL-126-138XL Single Insert Drill 1.250 Weldon

Part Number: KTODSL-126-138XL ISO: DSL-126-138XL ANSI:DSL-126-138XL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: 1078319
Vendor: Sussex Tool and Supply
$443.00
K-TOOL DSL-126-138XL Flat Blade Indexable Drill Boring Bar Dia1.2500,Weldon 1.2500 Positive Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 13.2500 336.55MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Type Of Tool Boring Bar
Insert/Tool TOOL
Insert Application General Purpose
Insert Style DI
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Type Positive
Cut Dia Min 1.2610 32.03MM
Inter/Extern Int / Ext
Drill Type Indexable Drill
Coolant Type Through
Depth Of Cut Max 9.0000
Type Indexable Drill Single Insert
Cut Dia Max 1.3850 35.18MM
Drill DOC 9.0000 228.60MM
Insert Screw 638T
