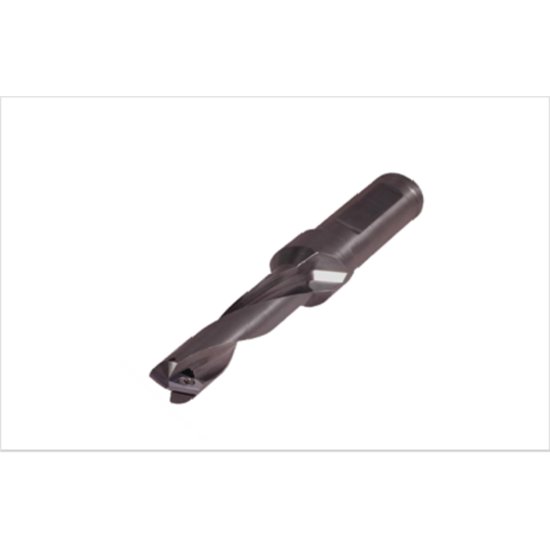

Picture of K-Tool DSL-113-126L Single Insert Drill 1.000 Weldon

K-Tool DSL-113-126L Single Insert Drill 1.000 Weldon

Part Number: KTODSL-113-126L ISO: DSL-113-126L ANSI:DSL-113-126L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: 1078302
Vendor: Sussex Tool and Supply
$339.00
K-TOOL DSL-113-126L Flat Blade Indexable Drill Boring Bar Dia1.0000,Weldon 1.0000 Positive Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 9.0000 228.60MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DI
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Type Positive
Cut Dia Min 1.1360 28.85MM
Inter/Extern Int / Ext
Drill Type Indexable Drill
Coolant Type Through
Depth Of Cut Max 5.0000
Type Indexable Drill Single Insert
Cut Dia Max 1.2600 32.00MM
Drill DOC 5.0000 127.00MM
Insert Screw 638T
