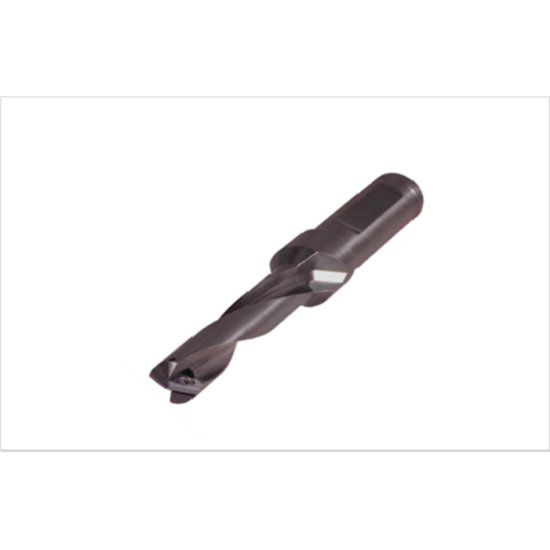

Picture of K-Tool DS-92-101L Single Insert Drill 1.000 Weldon

K-Tool DS-92-101L Single Insert Drill 1.000 Weldon

Part Number: KTODS-92-101L ISO: DS-92-101L ANSI:DS-92-101L
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1078286
Vendor: Sussex Tool and Supply
$301.05

Description

K-TOOL DS-92-101L Flat Blade Indexable Drill Boring Bar Dia1.0000,Weldon 1.0000 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DI
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Type Positive
Inter/Extern Int / Ext
Drill Type Indexable Drill
Coolant Type Through
Type Indexable Drill Single Insert
Insert Screw 560T
Dimensions & Sizing
Overall Length 7.9500 201.93MM
Shank/Pilot Dia 1.0000 25.40MM
Performance & Capacity
Cut Dia Min 0.9260 23.52MM
Depth Of Cut Max 4.0000
Cut Dia Max 1.0100 25.65MM
Drill DOC 4.0000 101.60MM
Materials & Finish
Tool Material Steel
