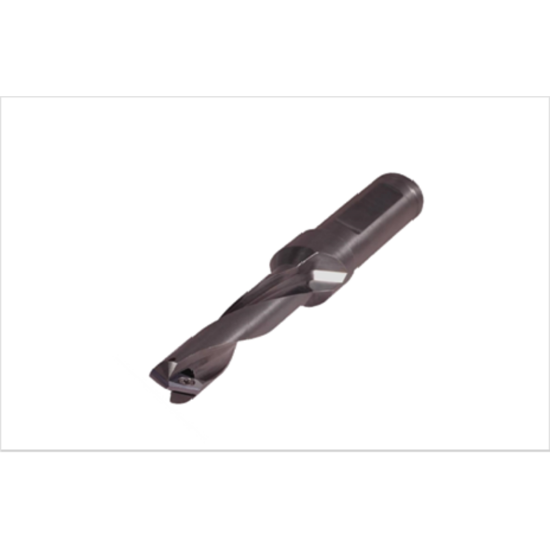

Picture of K-TOOL DS-76-84L Single Insert Drill 1.000 Weldon

K-TOOL DS-76-84L Single Insert Drill 1.000 Weldon

ANSI: DS-76-84L

ISO: DS-76-84L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODS-76-84L
Delivery date: 3-5 days
$308.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 Single Insert
Application Single Insert Drilling, Insert Drilling
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application General Purpose
Additional Key Information 1 Indexable Drill
Insert Type Positive
Additional Key Information 3 Drill
Package Size 1
Sold by Pieces 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Dia Min 0.7610 19.33MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Depth Of Cut Max 4.0000
Tool Material Steel
Overall Len 7.9500 201.93MM
Drill DOC 4.0000
Machine Side BBAR1.0000,WELDON1.0000
Cut Dia Max 0.8400 21.34MM
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Style DI
Coolant Thru Yes
Inter/Extern Int / Ext
Cool Sply Type Through
Insert Shape/Cutter Pocket Shape Flat Blade
Fasteners & Connectors
Insert Screw 560T
