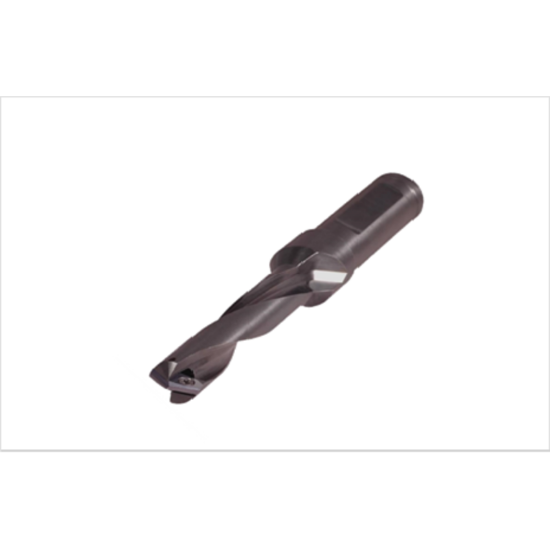

Picture of K-TOOL DS-69-76L Single Insert Drill 0.750 Weldon

K-TOOL DS-69-76L Single Insert Drill 0.750 Weldon

ANSI: DS-69-76L

ISO: DS-69-76L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODS-69-76L
Delivery date: 3-5 days
$266.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 Single Insert
Application Single Insert Drilling, Insert Drilling
Additional Key Information 3 Drill
Package Size 1
Sold by Pieces 1
Insert Type Positive
Insert/Tool Tool
Insert Application General Purpose
Additional Key Information 1 Indexable Drill
Shipping State Pennsylvania
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Overall Len 6.5000 165.10MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Depth Of Cut Max 3.0000
Drill DOC 3.0000
Machine Side BBAR0.750,WELDON0.750
Machine Side Connection Type Weldon
Cut Dia Max 0.7600 19.30MM
Cut Dia Min 0.6960 17.68MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Flat Blade
Inter/Extern Internal
Insert Style DI
Cool Sply Type Through
Fasteners & Connectors
Insert Screw 314T
