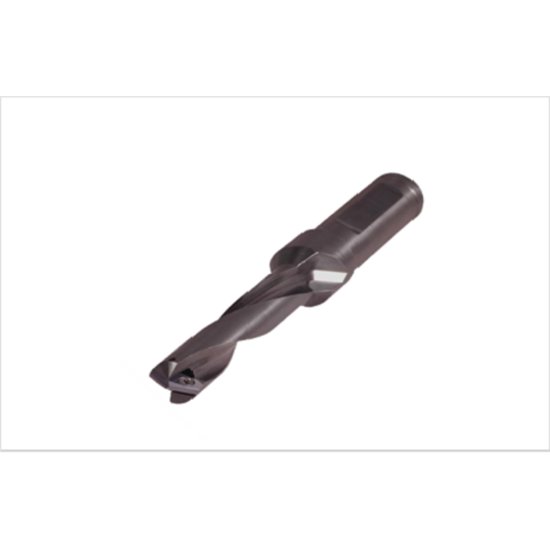

Picture of K-Tool DS-57-63L Single Insert Drill 0.750 Weldon

K-Tool DS-57-63L Single Insert Drill 0.750 Weldon

Part Number: KTODS-57-63L ISO: DS-57-63L ANSI:DS-57-63L
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1078245
Vendor: Sussex Tool and Supply
$258.17

Description

K-TOOL DS-57-63L Flat Blade Indexable Drill Boring Bar Dia0.750,Weldon 0.750 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DI
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Type Positive
Inter/Extern Internal
Drill Type Indexable Drill
Coolant Type Through
Type Indexable Drill Single Insert
Insert Screw 314T
Dimensions & Sizing
Overall Length 6.5000 165.10MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Performance & Capacity
Cut Dia Min 0.5710 14.50MM
Depth Of Cut Max 3.0000
Cut Dia Max 0.6300 16.00MM
Drill DOC 3.0000 76.20MM
Materials & Finish
Tool Material Steel
