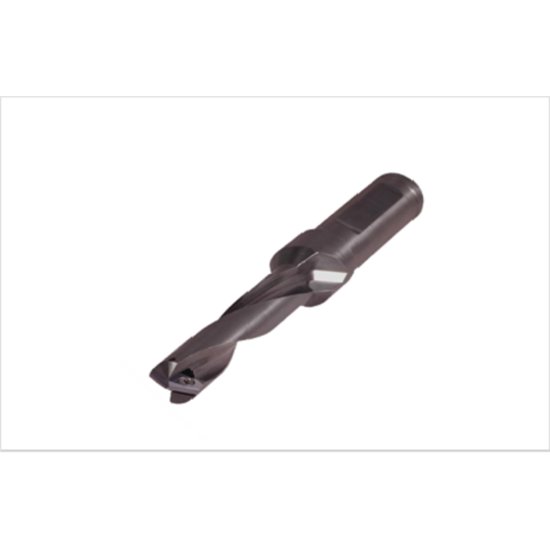

Picture of K-Tool DS-126-138L Single Insert Drill 1.250 Weldon

K-Tool DS-126-138L Single Insert Drill 1.250 Weldon

Part Number: KTODS-126-138L ISO: DS-126-138L ANSI:DS-126-138L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: 1078313
Vendor: Sussex Tool and Supply
$387.00
K-TOOL DS-126-138L Flat Blade Indexable Drill Boring Bar Dia1.2500,Weldon 1.2500 Positive Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 10.2500 260.35MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Type Of Tool Boring Bar
Insert/Tool TOOL
Insert Application General Purpose
Insert Style DI
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Type Positive
Cut Dia Min 1.2610 32.03MM
Inter/Extern Int / Ext
Drill Type Indexable Drill
Coolant Type Through
Depth Of Cut Max 6.0000
Type Indexable Drill Single Insert
Cut Dia Max 1.3850 35.18MM
Drill DOC 6.0000 152.40MM
Insert Screw 638T
