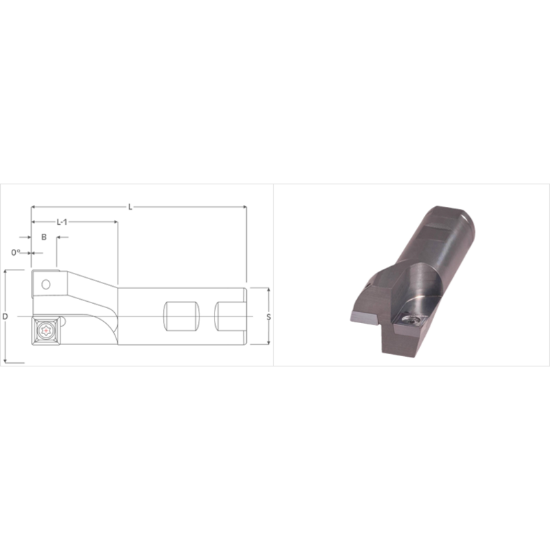

Picture of K-TOOL DM-687 Milling Cutter 90.0°, Drill Mill 0.687 Cutter Diameter 0.750 Weldon

K-TOOL DM-687 Milling Cutter 90.0°, Drill Mill 0.687 Cutter Diameter 0.750 Weldon

ANSI: DM-687

ISO: DM-687

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODM-687
Delivery date: 3-5 days
$113.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Features And Benefits

Cuts a flat bottom within .001 - Uses the same insert in both pockets - Center cutting - Drill from solid or ramp into a part at any angle - Ideal for pocket milling - Drilling shallow depth flat bottom holes - 4 cutting edges per insert

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Insert Application Semi Finishing, Roughing
Additional Key Information 1 90.0°, Drill Mill
Application Plunge Milling, Shoulder Milling, Slot Milling, Pocket Milling, Drilling, Ramp Milling, Side Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Shipping State Pennsylvania
Additional Key Information 3 90.0°, Drill Mill
Additional Key Information 2 Milling Cutter
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side Connection Type Weldon
Machine Side WELDON0.7500
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Depth Of Cut Max 0.2350
Cutter Dia 0.6870 17.45MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Neck Length 0.9700 24.64MM
Overall Len 3.0000 76.20MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 314T
