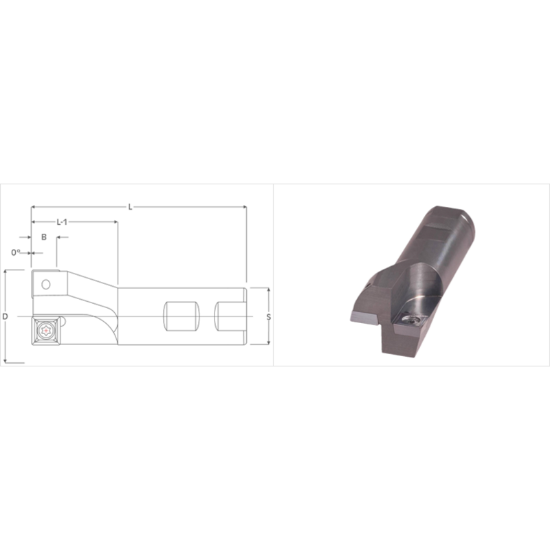

Picture of K-TOOL DM-562 Milling Cutter 90.0°, Drill Mill 0.562 Cutter Diameter 0.750 Weldon

K-TOOL DM-562 Milling Cutter 90.0°, Drill Mill 0.562 Cutter Diameter 0.750 Weldon

ANSI: DM-562

ISO: DM-562

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODM-562
Delivery date: 3-5 days
$111.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Features And Benefits

Cuts a flat bottom within .001 - Uses the same insert in both pockets - Center cutting - Drill from solid or ramp into a part at any angle - Ideal for pocket milling - Drilling shallow depth flat bottom holes - 4 cutting edges per insert

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 90.0°, Drill Mill
Package Size 1
Sold by Pieces 1
Insert Application Semi Finishing, Roughing
Additional Key Information 2 Milling Cutter
Application Ramp Milling, Side Milling, Slot Milling, Pocket Milling, Drilling, Plunge Milling, Shoulder Milling
Insert/Tool Tool
Shipping State Pennsylvania
Additional Key Information 3 90.0°, Drill Mill
Insert Type Positive
Uncategorized
Made In USA Yes
Dimensional Specifications
Machine Side WELDON0.7500
Flutes/Inserts 2
Machine Side Connection Type Weldon
Overall Len 3.0000 76.20MM
Depth Of Cut Max 0.1700
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 0.5620 14.27MM
Neck Length 1.0000 25.40MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 164T
