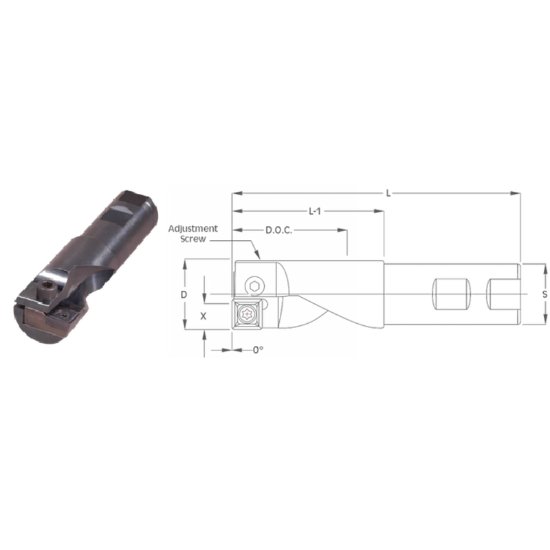

Picture of K-Tool CH-750-937 Milling Cutter 0.750 Weldon

K-Tool CH-750-937 Milling Cutter 0.750 Weldon

Part Number: KTOCH-750-937 ISO: CH-750-937 ANSI:CH-750-937
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1094751
Vendor: Sussex Tool and Supply
$287.65

Description

K-TOOL CH-750-937 Square 90.0°, Counterbore End Mill Weldon 0.7500 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Counter Bore
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Screw 300T
Seat/Nest CH-221
Seat Screw #103262
Dimensions & Sizing
Overall Length 3.7500 95.25MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Over Hang 1.7500
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 1.3750
Cut Dia Max 0.9370 23.80MM
Materials & Finish
Tool Material Steel
