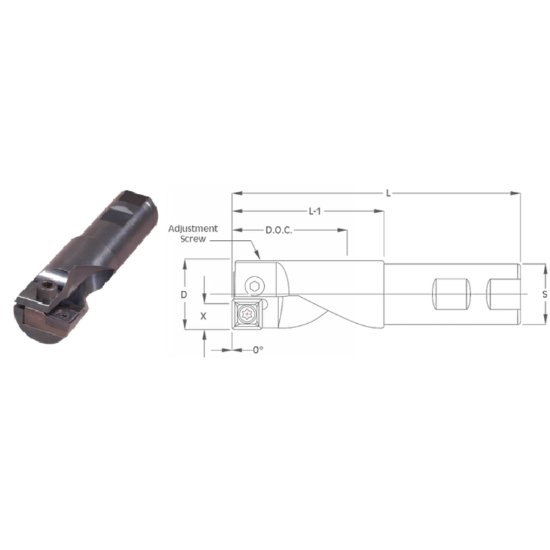

Picture of K-Tool CH-600-750 Milling Cutter 0.750 Weldon

K-Tool CH-600-750 Milling Cutter 0.750 Weldon

Part Number: KTOCH-600-750 ISO: CH-600-750 ANSI:CH-600-750
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1094750
Vendor: Sussex Tool and Supply
$287.65

Description

K-TOOL CH-600-750 Square 90.0°, Counterbore End Mill Weldon 0.7500 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Counter Bore
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Screw 164T
Seat/Nest CH-1511
Seat Screw #63212
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Over Hang 1.5000
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.6000 15.24MM
Depth Of Cut Max 1.2500
Cut Dia Max 0.7500 19.05MM - 3/4
Materials & Finish
Tool Material Steel
