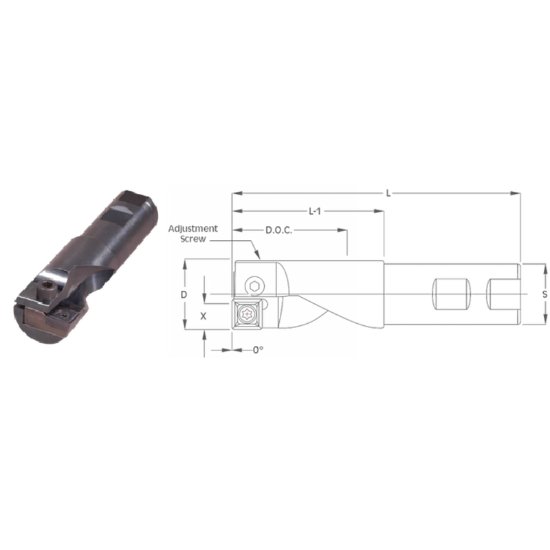

Picture of K-Tool CH-1187-1437 Milling Cutter 1.000 Weldon

K-Tool CH-1187-1437 Milling Cutter 1.000 Weldon

Part Number: KTOCH-1187-1437 ISO: CH-1187-1437 ANSI:CH-1187-1437
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1094753
Vendor: Sussex Tool and Supply
$366.27

Description

K-TOOL CH-1187-1437 Square 90.0°, Counterbore End Mill Weldon 1.0000 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Counter Bore
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Screw 638T
Seat/Nest CH-432
Seat Screw #142878
Dimensions & Sizing
Overall Length 4.5000 114.30MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Over Hang 2.2500
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.1870 30.15MM
Depth Of Cut Max 1.8750
Cut Dia Max 1.4370 36.50MM
Materials & Finish
Tool Material Steel
