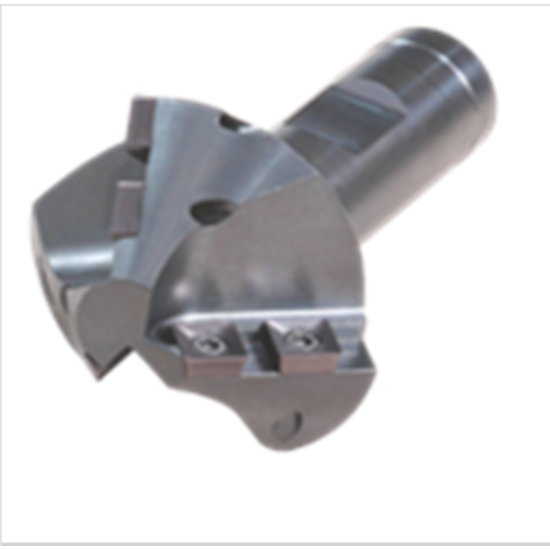

Picture of K-Tool CC-40 Milling Cutter 40.0° 2.030 Cutter Diameter 0.750 Weldon

K-Tool CC-40 Milling Cutter 40.0° 2.030 Cutter Diameter 0.750 Weldon

Part Number: KTOCC-40 2.030 x 0.750 x 0.900 x 3.125 ISO: CC-40 ANSI:CC-40
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1013031
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

K-TOOL CC-40 Square 40.0°, Corn Cob, Chamfer Mill End Mill Weldon 0.7500 Positive 2.0300 51.56MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Chamfer Mill, Corn Cob
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Screw 314T
Dimensions & Sizing
Overall Length 3.1250 79.38MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 8
Tool Dia 2.0300 51.56MM
Length Of Cut 0.9000 22.86MM
Insert Size Ic 25
Neck Length 1.1250 28.58MM
Geometry & Angles
Cutting Edge Angle 40.0°
Performance & Capacity
Cut Dia Min 1.3860 35.20MM
Depth Of Cut Max 0.9000
Cut Dia Max 2.0300 51.56MM
Materials & Finish
Tool Material Steel
