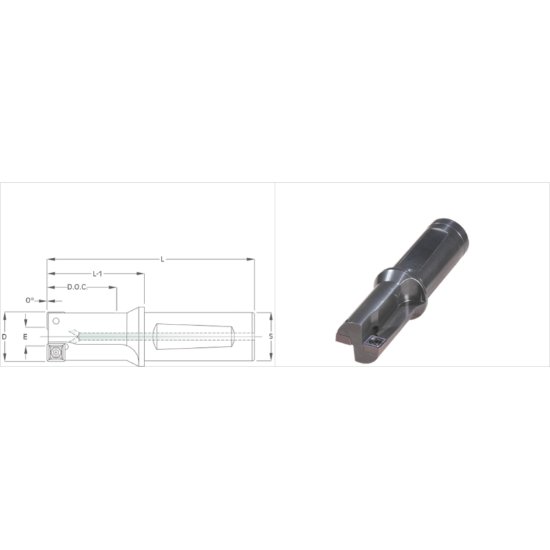

Picture of K-Tool CBN-29mm Milling Cutter 1.142 Cutter Diameter 1.000 Weldon

K-Tool CBN-29mm Milling Cutter 1.142 Cutter Diameter 1.000 Weldon

Part Number: KTOCBN-29MM ISO: CBN-29MM ANSI:CBN-29MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: 1094745
Vendor: Sussex Tool and Supply
$283.00
K-TOOL CBN-29MM Square 90.0°, Counterbore End Mill Weldon 1.0000 Positive 1.1420 29.01MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Counter Bore
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 4.5000 114.30MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 1.1420 29.01MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Cut Dia Min 0.2400 6.10MM
Depth Of Cut Max 1.5310
Insert Screw 638T
Cutting Edge Angle 90.0°
