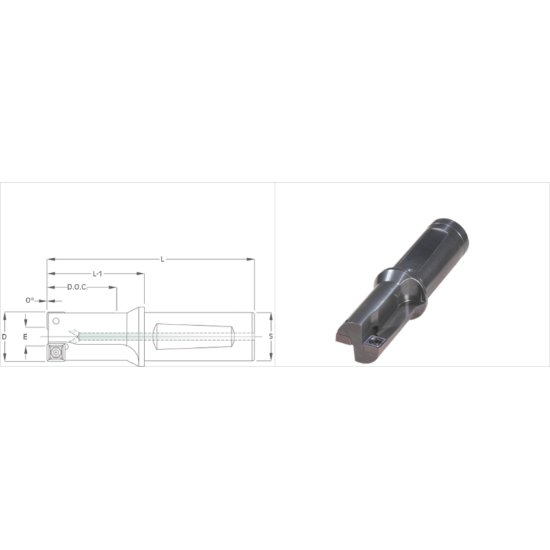

Picture of K-Tool CBN-22mm Milling Cutter 0.866 Cutter Diameter 1.000 Weldon

K-Tool CBN-22mm Milling Cutter 0.866 Cutter Diameter 1.000 Weldon

Part Number: KTOCBN-22MM ISO: CBN-22MM ANSI:CBN-22MM
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1094742
Vendor: Sussex Tool and Supply
$253.71

Description

K-TOOL CBN-22MM Square 90.0°, Counterbore End Mill Weldon 1.0000 Positive 0.8660 22.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Counter Bore
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Screw 314T
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.8661 22.00MM
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.2900 7.37MM - L
Depth Of Cut Max 1.1560
Materials & Finish
Tool Material Steel
