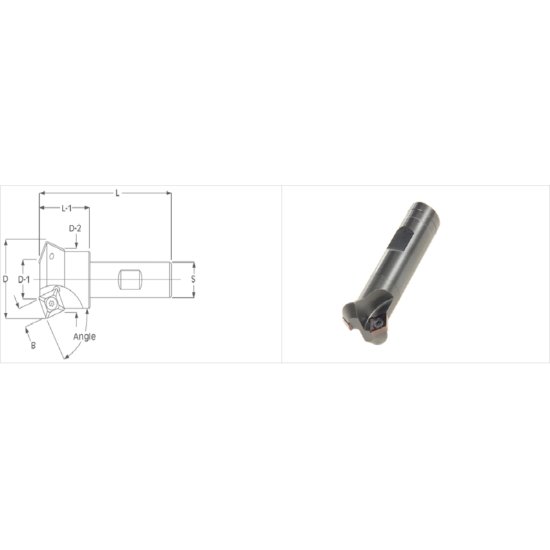

Picture of K-Tool A-6775 Milling Cutter 67.5° 2.250 Cutter Diameter 1.000 Weldon

K-Tool A-6775 Milling Cutter 67.5° 2.250 Cutter Diameter 1.000 Weldon

Part Number: KTOA-6775 2.250 x 1.000 x 0.687 x 3.750 ISO: A-6775 ANSI:A-6775
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1013058
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

K-TOOL A-6775 Square 67.5°, Chamfer Mill End Mill Weldon 1.0000 Positive 2.2500 57.15MM - 2-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Chamfer Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Screw 1012T
Dimensions & Sizing
Overall Length 3.7500 95.25MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 2.2500 57.15MM - 2-1/4
Length Of Cut 0.6870 17.45MM
Insert Size Ic 63
Neck Length 1.5000 38.10MM
Geometry & Angles
Cutting Edge Angle 67.5°
Performance & Capacity
Cut Dia Min 0.9600 24.38MM
Depth Of Cut Max 0.6870
Cut Dia Max 2.2500 57.15MM
Materials & Finish
Tool Material Steel
