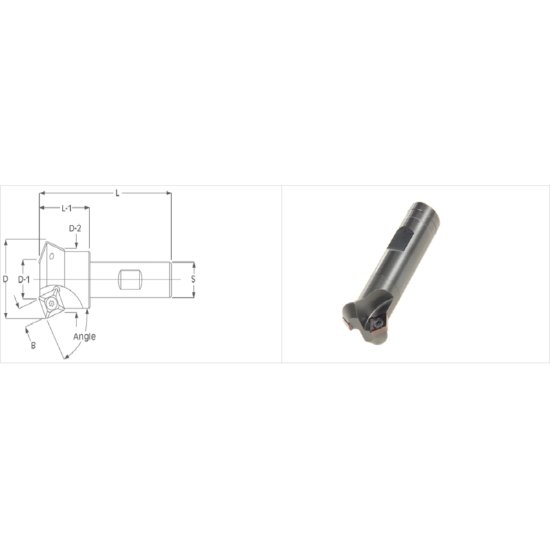

Picture of K-Tool A-5785 Milling Cutter 70.0° 2.250 Cutter Diameter 1.000 Weldon

K-Tool A-5785 Milling Cutter 70.0° 2.250 Cutter Diameter 1.000 Weldon

Part Number: KTOA-5785 2.250 x 1.000 x 0.687 x 3.750 ISO: A-5785 ANSI:A-5785

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: 1013062
Vendor: Sussex Tool and Supply
$357.00
K-TOOL A-5785 Square 70.0°, Chamfer Mill End Mill Weldon 1.0000 Positive 2.2500 57.15MM - 2-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Chamfer Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 3.7500 95.25MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 2.2500 57.15MM - 2-1/4
Type Of Tool End Mill
Insert/Tool TOOL
Length Of Cut 0.6870 17.45MM
Insert Application General Purpose
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 63
Cut Dia Min 0.9300 23.62MM
Neck Length 1.5000 38.10MM
Depth Of Cut Max 0.6870
Cut Dia Max 2.2500 57.15MM
Insert Screw 1012T
Cutting Edge Angle 70.0°
