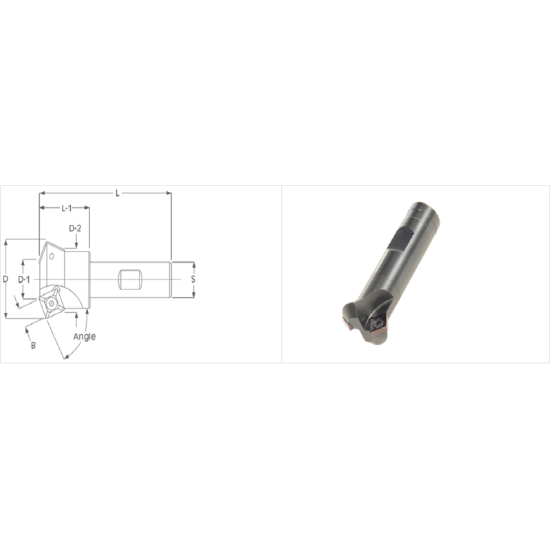

Picture of K-TOOL A-5784 Milling Cutter 70.0° 1.625 Cutter Diameter 0.750 Weldon

K-TOOL A-5784 Milling Cutter 70.0° 1.625 Cutter Diameter 0.750 Weldon

ANSI: A-5784

ISO: A-5784

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-5784
Delivery date: 3-5 days
$281.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Features And Benefits

Uses High Shear Positive Top Insert - Free Cutting - Excellent Part Finishes - Several Grades Available

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Additional Key Information 1 Chamfer Mill, 70.0°
Application Chamfering
Shipping State Pennsylvania
Package Size 1
Sold by Pieces 1
Insert Type Positive
Additional Key Information 3 70.0°
Additional Key Information 2 Milling Cutter
Insert Application General Purpose
Uncategorized
Made In USA Yes
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Neck Length 1.2500 31.75MM
Length Of Cut 0.4380 11.13MM
Insert Size Ic 43
Machine Side WELDON0.7500
Flutes/Inserts 2
Dimension Description 1.625 x 0.750 x 0.438 x 3.250
Depth Of Cut Max 0.4380
Cut Dia Min 0.7800 19.81MM
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 3.2500 82.55MM
Cutter Dia 1.6250 41.28MM - 1-5/8
Cut Dia Max 1.6250 41.28MM
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 638T
