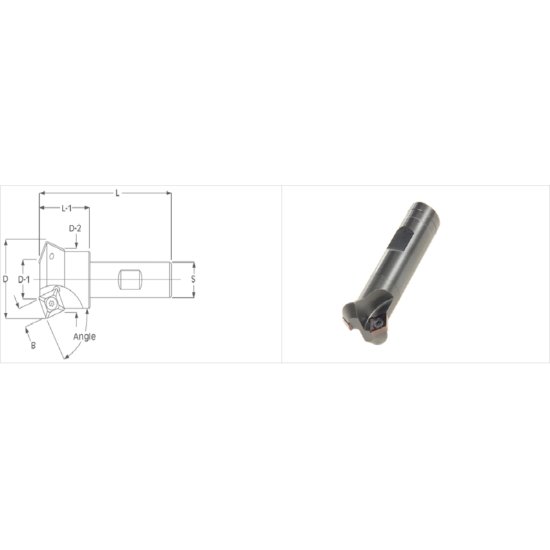

Picture of K-Tool A-5782 Milling Cutter 70.0° 0.625 Cutter Diameter 0.500 Weldon

K-Tool A-5782 Milling Cutter 70.0° 0.625 Cutter Diameter 0.500 Weldon

Part Number: KTOA-5782 0.625 x 0.500 x 0.156 x 2.500 ISO: A-5782 ANSI:A-5782

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: 1013059
Vendor: Sussex Tool and Supply
$143.00
K-TOOL A-5782 Square 70.0°, Chamfer Mill End Mill Weldon 0.5000 Positive 0.6250 15.88MM - 5/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Chamfer Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.5000 12.70MM
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Type Of Tool End Mill
Insert/Tool TOOL
Length Of Cut 0.1560 3.96MM
Insert Application General Purpose
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 15
Cut Dia Min 0.3200 8.13MM
Neck Length 0.7500 19.05MM
Depth Of Cut Max 0.1560
Cut Dia Max 0.6250 15.88MM - 5/8
Insert Screw 164T
Cutting Edge Angle 70.0°
