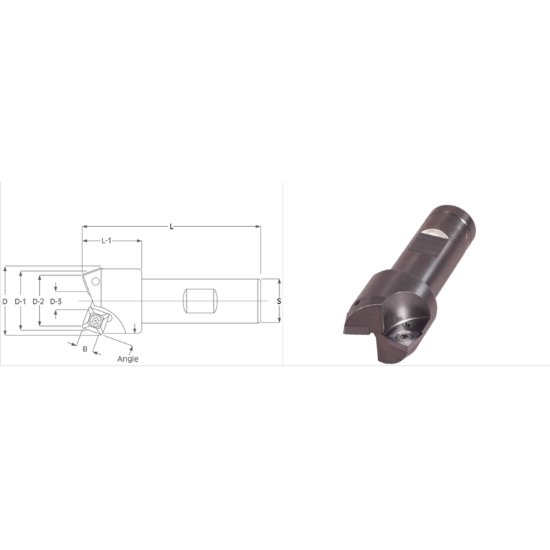

Picture of K-Tool A-5769 Milling Cutter 30.0° 0.625 Cutter Diameter 0.500 Weldon

K-Tool A-5769 Milling Cutter 30.0° 0.625 Cutter Diameter 0.500 Weldon

Part Number: KTOA-5769 0.625 x 0.500 x 0.156 x 2.500 ISO: A-5769 ANSI:A-5769
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1013034
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

K-TOOL A-5769 Square 30.0°, Chamfer Mill End Mill Weldon 0.5000 Positive 0.6250 15.88MM - 5/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Chamfer Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Screw 164T
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 0.1560 3.96MM
Insert Size Ic 15
Neck Length 0.7500 19.05MM
Geometry & Angles
Cutting Edge Angle 30.0°
Performance & Capacity
Cut Dia Min 0.4850 12.32MM
Depth Of Cut Max 0.1560
Cut Dia Max 0.6250 15.88MM - 5/8
Materials & Finish
Tool Material Steel
