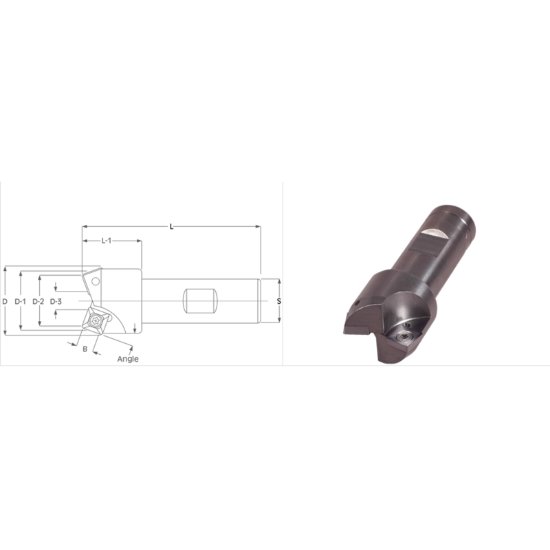

Picture of K-Tool A-5766 Milling Cutter 41.0° 1.125 Cutter Diameter 0.750 Weldon

K-Tool A-5766 Milling Cutter 41.0° 1.125 Cutter Diameter 0.750 Weldon

Part Number: KTOA-5766

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: 1013044
Vendor: Sussex Tool and Supply
$198.00
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 0.7500 19.05MM - 3/4
Insert Application General Purpose
Cutter Type Chamfer Mill
Cutting Edge Angle 41.0°
Depth Of Cut Max 0.3120
Overall Length 3.0000 76.20MM
Insert Size (IC) 32
Machine Side (Toolpost) WELDON0.7500
Insert Type Positive
Insert Screw 438T
Length Of Cut 0.3120 7.92MM
Insert Style SP
Type of Tool End Mill
Insert Or Tool TOOL
Insert Shape Or Cutter Pocket Shape Square
Machine Side (Toolpost) Connection Type Weldon
Flutes Or Inserts 2
Shipping State PENNSYLVANIA
Tool Material Steel
Mach Side Connection Size 0.7500 19.05MM - 3/4
Tool Diameter 1.1250 28.58MM - 1-1/8
Cut Diameter Min 0.7100 18.03MM
Cut Diameter Max 1.1250 28.58MM - 1-1/8
Neck Length 1.0000 25.40MM
Made In USA YES
