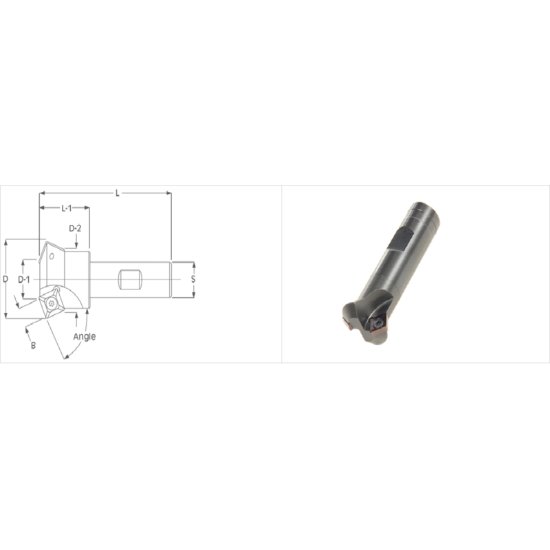

Picture of K-Tool A-5761 Milling Cutter 60.0° 1.125 Cutter Diameter 0.750 Weldon

K-Tool A-5761 Milling Cutter 60.0° 1.125 Cutter Diameter 0.750 Weldon

Part Number: KTOA-5761 1.125 x 0.750 x 0.312 x 3.000 ISO: A-5761 ANSI:A-5761
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1013051
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

K-TOOL A-5761 Square 60.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.1250 28.58MM - 1-1/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Chamfer Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Screw 438T
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 1.1250 28.58MM - 1-1/8
Length Of Cut 0.3120 7.92MM
Insert Size Ic 32
Neck Length 1.0000 25.40MM
Geometry & Angles
Cutting Edge Angle 60.0°
Performance & Capacity
Cut Dia Min 0.5600 14.22MM
Depth Of Cut Max 0.3120
Cut Dia Max 1.1250 28.58MM - 1-1/8
Materials & Finish
Tool Material Steel
