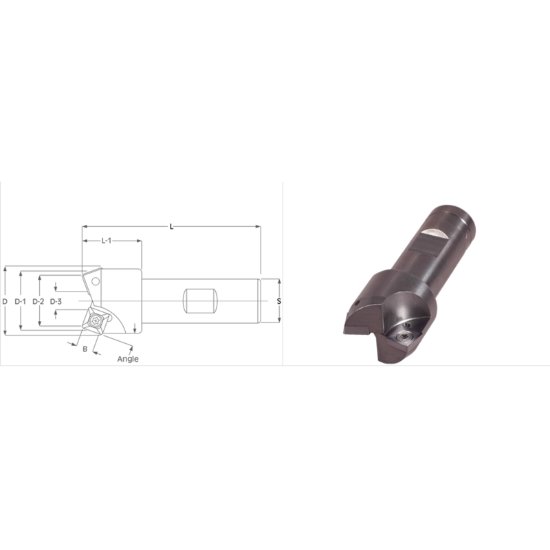

Picture of K-Tool A-5758 Milling Cutter 15.0° 1.125 Cutter Diameter 0.750 Weldon

K-Tool A-5758 Milling Cutter 15.0° 1.125 Cutter Diameter 0.750 Weldon

Part Number: KTOA-5758 1.125 x 0.750 x 0.312 x 3.000 ISO: A-5758 ANSI:A-5758

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: 1013024
Vendor: Sussex Tool and Supply
$193.00
K-TOOL A-5758 Square 15.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 1.1250 28.58MM - 1-1/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Chamfer Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 1.1250 28.58MM - 1-1/8
Type Of Tool End Mill
Insert/Tool TOOL
Length Of Cut 0.3120 7.92MM
Insert Application General Purpose
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 32
Cut Dia Min 0.9700 24.64MM
Neck Length 1.0000 25.40MM
Depth Of Cut Max 0.3120
Cut Dia Max 1.1250 28.58MM - 1-1/8
Insert Screw 438T
Cutting Edge Angle 15.0°
