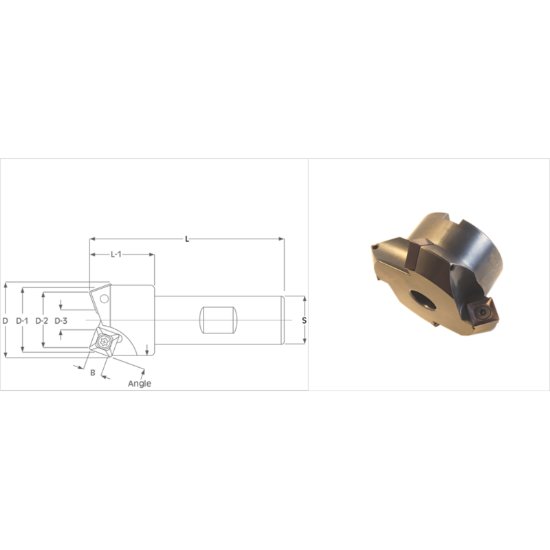

Picture of K-Tool A-4000S Milling Cutter 45.0°

K-Tool A-4000S Milling Cutter 45.0°

Part Number: KTOA-4000S ISO: A-4000S ANSI:A-4000S
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012992
Vendor: Sussex Tool and Supply
$581.56

Description

K-TOOL A-4000S Square 45.0°, Chamfer Mill SHELL1.0000 Positive 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Chamfer Mill
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Screw 1012T
Dimensions & Sizing
Overall Length 1.6250 41.28MM
Flutes/Inserts 4
Tool Dia 4.0000 101.60MM
Length Of Cut 0.6870 17.45MM
Insert Size Ic 63
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 3.0300 76.96MM
Depth Of Cut Max 0.4860
Cut Dia Max 4.0000 101.60MM
Materials & Finish
Tool Material Steel
