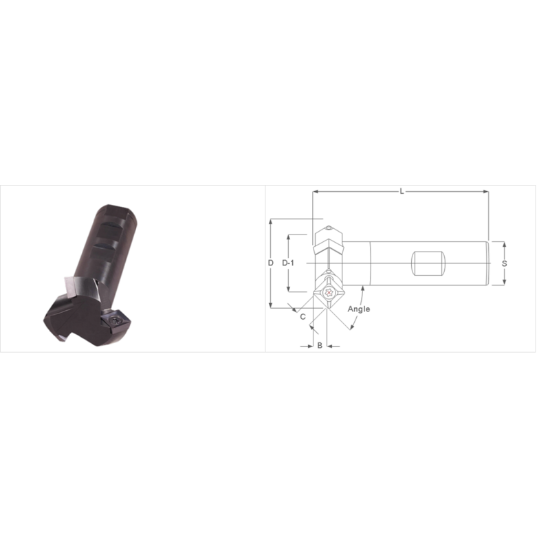

Picture of K-TOOL A-2299 Milling Cutter 45.0° 0.625 x 0.500 x 0.156 x 2.875

K-TOOL A-2299 Milling Cutter 45.0° 0.625 x 0.500 x 0.156 x 2.875

ANSI: A-2299

ISO: A-2299

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-2299
Delivery date: 3-5 days
$142.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Features And Benefits

45° Multi-Purpose Chamfer Mills - Shank & Shell Mill Available - Available in .500 - 3.500 Diameter - Uses High Shear Positive Top Inserts - Free Cutting - Excellent Part Finishes - Several Insert Grades Available

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Additional Key Information 1 45.0°, Chamfer Mill
Application Chamfering
Shipping State Pennsylvania
Package Size 1
Sold by Pieces 1
Additional Key Information 3 45.0°
Insert Type Positive
Additional Key Information 2 Milling Cutter
Insert Application General Purpose
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Cut Dia Min 0.4100 10.41MM
Overall Len 2.8750 73.03MM
Flutes/Inserts 2
Machine Side Connection Type Weldon
Depth Of Cut Max 0.1100
Machine Side Connection Size 0.5000 12.70MM
Cutter Dia 0.6250 15.88MM - 5/8
Dimension Description 0.625 x 0.500 x 0.156 x 2.875
Insert Size Ic 15
Machine Side WELDON0.5000
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Of Cut 0.1560 3.96MM
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 164T
