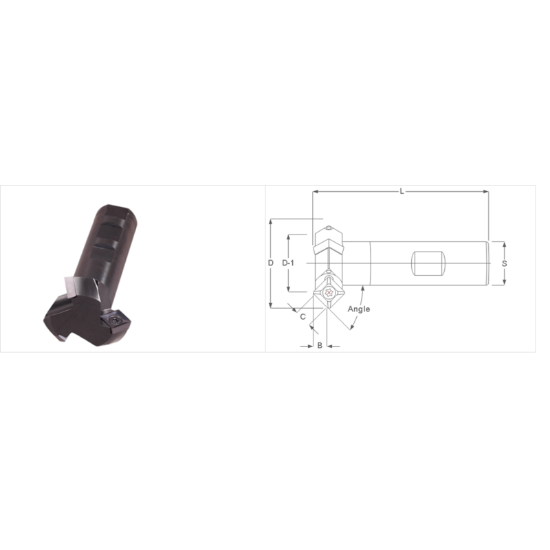

Picture of K-TOOL A-1385MF Milling Cutter 45.0° 1.500 x 0.750 x 0.188 x 3.500

K-TOOL A-1385MF Milling Cutter 45.0° 1.500 x 0.750 x 0.188 x 3.500

ANSI: A-1385MF

ISO: A-1385MF

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-1385MF
Delivery date: 3-5 days
$211.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Features And Benefits

45° Multi-Purpose Chamfer Mills - Shank & Shell Mill Available - Available in .500 - 3.500 Diameter - Uses High Shear Positive Top Inserts - Free Cutting - Excellent Part Finishes - Several Insert Grades Available

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Additional Key Information 1 Chamfer Mill, 45.0°
Application Chamfering
Insert Application General Purpose
Shipping State Pennsylvania
Sold by Pieces 1
Additional Key Information 3 45.0°
Insert Type Positive
Additional Key Information 2 Milling Cutter
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Insert Size Ic 22
Overall Len 3.5000 88.90MM
Depth Of Cut Max 0.1320
Machine Side Connection Size 0.7500 19.05MM
Tool Material Steel
Length Of Cut 0.1880 4.78MM
Cut Dia Min 1.2200 30.99MM
Machine Side WELDON0.7500
Flutes/Inserts 4
Dimension Description 1.500 x 0.750 x 0.188 x 3.500
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 314T
