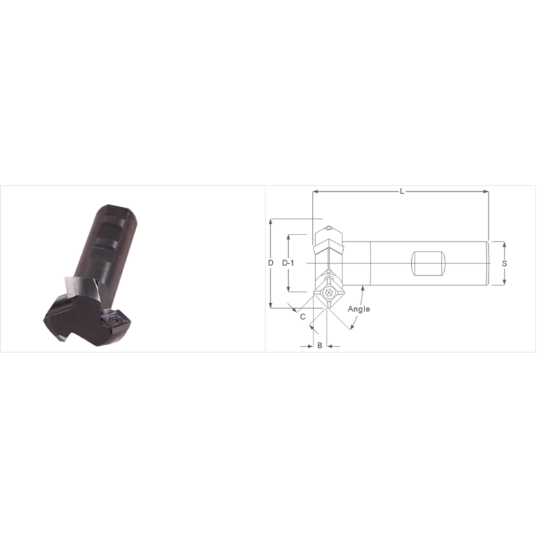

Picture of K-TOOL A-1383-2 Milling Cutter 45.0° 1.000 x 0.750 x 0.250 x 3.000

K-TOOL A-1383-2 Milling Cutter 45.0° 1.000 x 0.750 x 0.250 x 3.000

ANSI: A-1383-2

ISO: A-1383-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOA-1383-2
Delivery date: 3-5 days
$153.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Features And Benefits

45° Multi-Purpose Chamfer Mills - Shank & Shell Mill Available - Available in .500 - 3.500 Diameter - Uses High Shear Positive Top Inserts - Free Cutting - Excellent Part Finishes - Several Insert Grades Available

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Additional Key Information 1 45.0°, Chamfer Mill
Sold by Pieces 1
Additional Key Information 3 45.0°
Additional Key Information 2 Milling Cutter
Insert Type Positive
Insert/Tool Tool
Application Chamfering
Shipping State Pennsylvania
Uncategorized
Made In USA Yes
Dimensional Specifications
Insert Size Ic 25
Length Of Cut 0.2500 6.35MM
Machine Side WELDON0.7500
Flutes/Inserts 2
Dimension Description 1.000 x 0.750 x 0.250 x 3.000
Cutter Dia 1.0000 25.40MM
Cut Dia Min 0.6300 16.00MM
Machine Side Connection Type Weldon
Overall Len 3.0000 76.20MM
Cut Dia Max 1.0000 25.40MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.1760
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 314T
