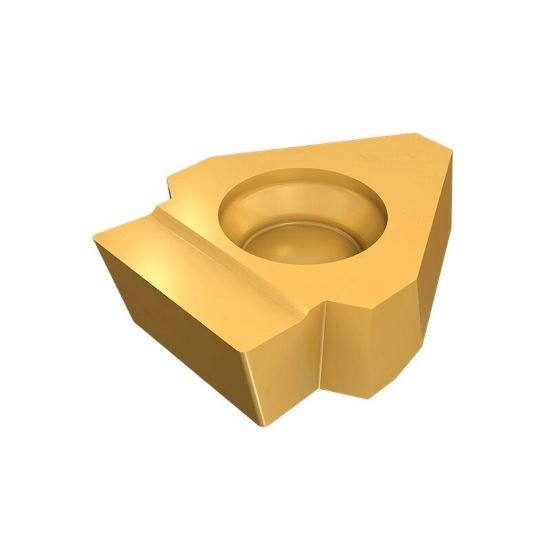

Picture of Iscar XNUWB 13-5.01-0.2  Broaching Insert

Iscar XNUWB 13-5.01-0.2  Broaching Insert

Part Number: ISC6405304 ISO: XNUWB 13-5.01-0.2  ANSI:XNUWB 13-5.01-0.2
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076867
Vendor: Sussex Tool and Supply
$58.54

Description

Iscar 6405304 Broaching Positive Tialn A tough submicron grain size substrate with a PVD coating, recommended for general use for diverse operations on materials such as steels, alloy steels, austenitic stainless steel and high temperature alloys at a wide range of cutting speeds. Features high wear resistance and chipping durability.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Insert/Tool INSERT
Cut Type General Purpose
Insert Style XN
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Dimensions & Sizing
Insert Size Ic 13
Cutting Width 0.1970 5.00MM
Geometry & Angles
Corner Radius 0.0080 0.20MM
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <40HRC Steel, Ductile Iron, High Temp
Depth Of Cut Max 0.1060
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Grade IC0908
