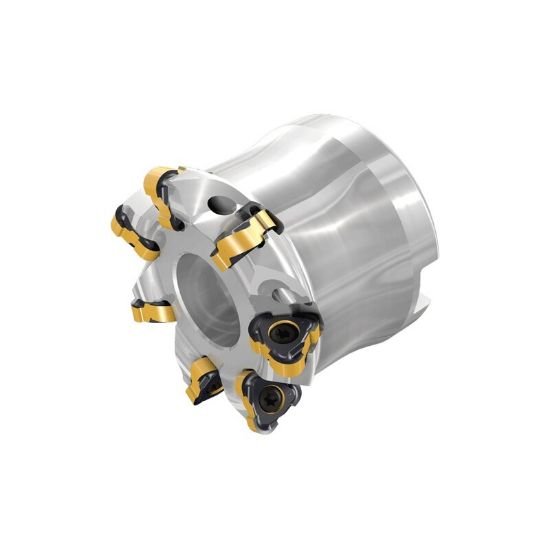

Picture of Iscar TR6 FR D2.50-08-1.00-10 Milling Cutter 45.0°, 90.0° 2.500 Diameter Face Mill 1.000 1.755 OAL 8 Flute

Iscar TR6 FR D2.50-08-1.00-10 Milling Cutter 45.0°, 90.0° 2.500 Diameter Face Mill 1.000 1.755 OAL 8 Flute

Part Number: ISC3344372 ISO: TR6 FR D2.50-08-1.00-10 ANSI:TR6 FR D2.50-08-1.00-10
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012926
Vendor: Sussex Tool and Supply
$885.12

Description

ISCAR 3344372 Multi 45.0°, 90.0°, End Mill, Chamfer Mill, Feed Mill SHELL1.0000 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill, Chamfer Mill, Feed Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TR
Insert Shape/Cutter Pocket Shape Multi
Insert Type Positive
Coolant Type External
Insert Screw 7006976
Dimensions & Sizing
Overall Length 1.7550 44.58MM
Flutes/Inserts 8
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 45.0°, 90.0°
Performance & Capacity
Cut Dia Min 2.3030 58.50MM
Depth Of Cut Max 0.0980
Cut Dia Max 2.5000 63.50MM - 2-1/2
Materials & Finish
Tool Material Steel
