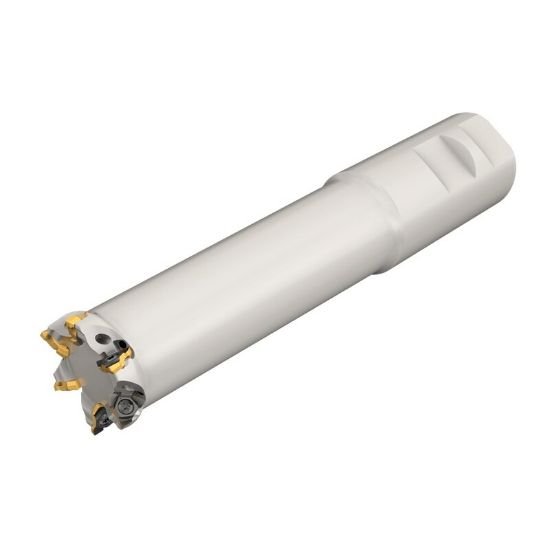

Picture of Iscar TR6 ERD1.25-4-3.5W1.25-10 Milling Cutter 45.0°, 90.0° 1.250 Diameter Weldon 1.250 5.780 OAL 4 Flute

Iscar TR6 ERD1.25-4-3.5W1.25-10 Milling Cutter 45.0°, 90.0° 1.250 Diameter Weldon 1.250 5.780 OAL 4 Flute

Part Number: ISC3344369 ISO: TR6 ERD1.25-4-3.5W1.25-10 ANSI:TR6 ERD1.25-4-3.5W1.25-10
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012923
Vendor: Sussex Tool and Supply
$412.80

Description

ISCAR 3344369 Multi 45.0°, 90.0°, End Mill, Chamfer Mill, Feed Mill End Mill Weldon 1.2500 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill, Chamfer Mill, Feed Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TR
Insert Shape/Cutter Pocket Shape Multi
Insert Type Positive
Coolant Type External
Insert Screw 7006976
Dimensions & Sizing
Overall Length 5.7800 146.81MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 45.0°, 90.0°
Performance & Capacity
Cut Dia Min 1.0530 26.75MM
Depth Of Cut Max 0.0980
Cut Dia Max 1.2500 31.75MM - 1-1/4
Materials & Finish
Tool Material Steel
