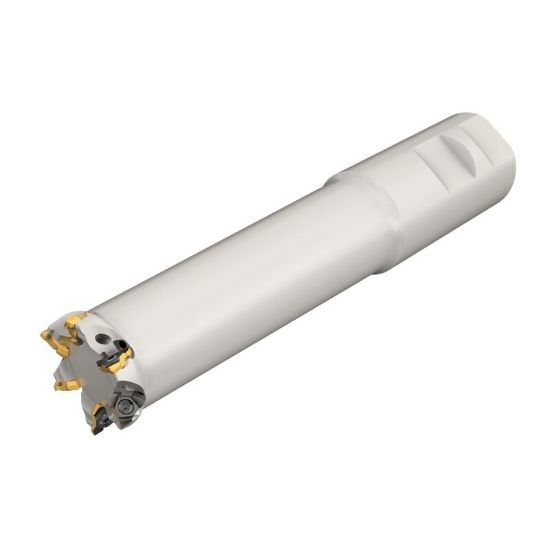

Picture of Iscar TR6 ERD1.00-3-3.0W1.00-10 Milling Cutter 45.0°, 90.0° 1.000 Diameter Weldon 1.000 5.280 OAL 3 Flute

Iscar TR6 ERD1.00-3-3.0W1.00-10 Milling Cutter 45.0°, 90.0° 1.000 Diameter Weldon 1.000 5.280 OAL 3 Flute

Part Number: ISC3344368 ISO: TR6 ERD1.00-3-3.0W1.00-10 ANSI:TR6 ERD1.00-3-3.0W1.00-10
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012922
Vendor: Sussex Tool and Supply
$368.64

Description

ISCAR 3344368 Multi 45.0°, 90.0°, End Mill, Chamfer Mill, Feed Mill End Mill Weldon 1.0000 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill, Chamfer Mill, Feed Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style TR
Insert Shape/Cutter Pocket Shape Multi
Insert Type Positive
Coolant Type External
Insert Screw 7006976
Dimensions & Sizing
Overall Length 5.2800 134.11MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 45.0°, 90.0°
Performance & Capacity
Cut Dia Min 0.8030 20.40MM
Depth Of Cut Max 0.0980
Cut Dia Max 1.0000 25.40MM
Materials & Finish
Tool Material Steel
